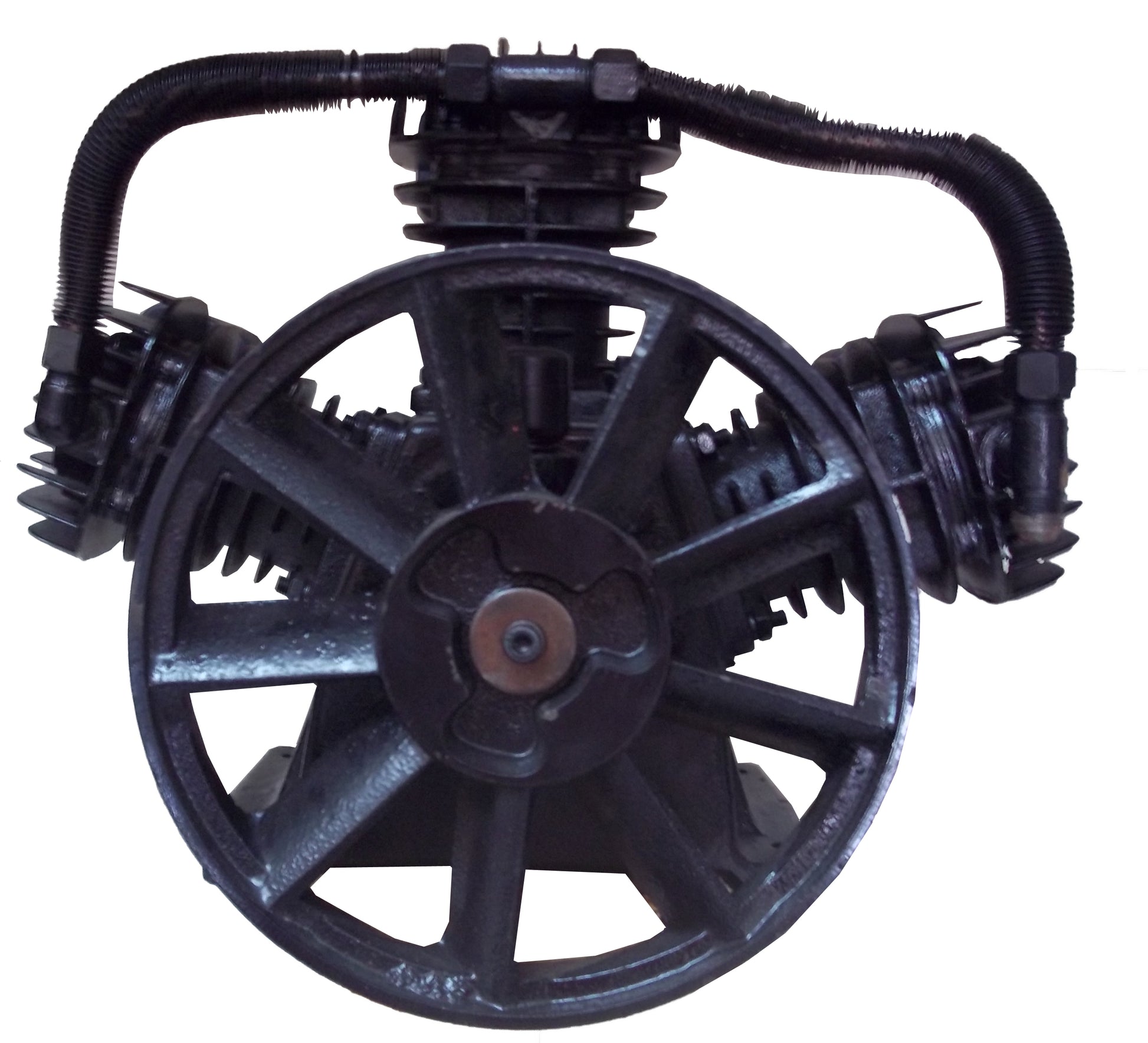

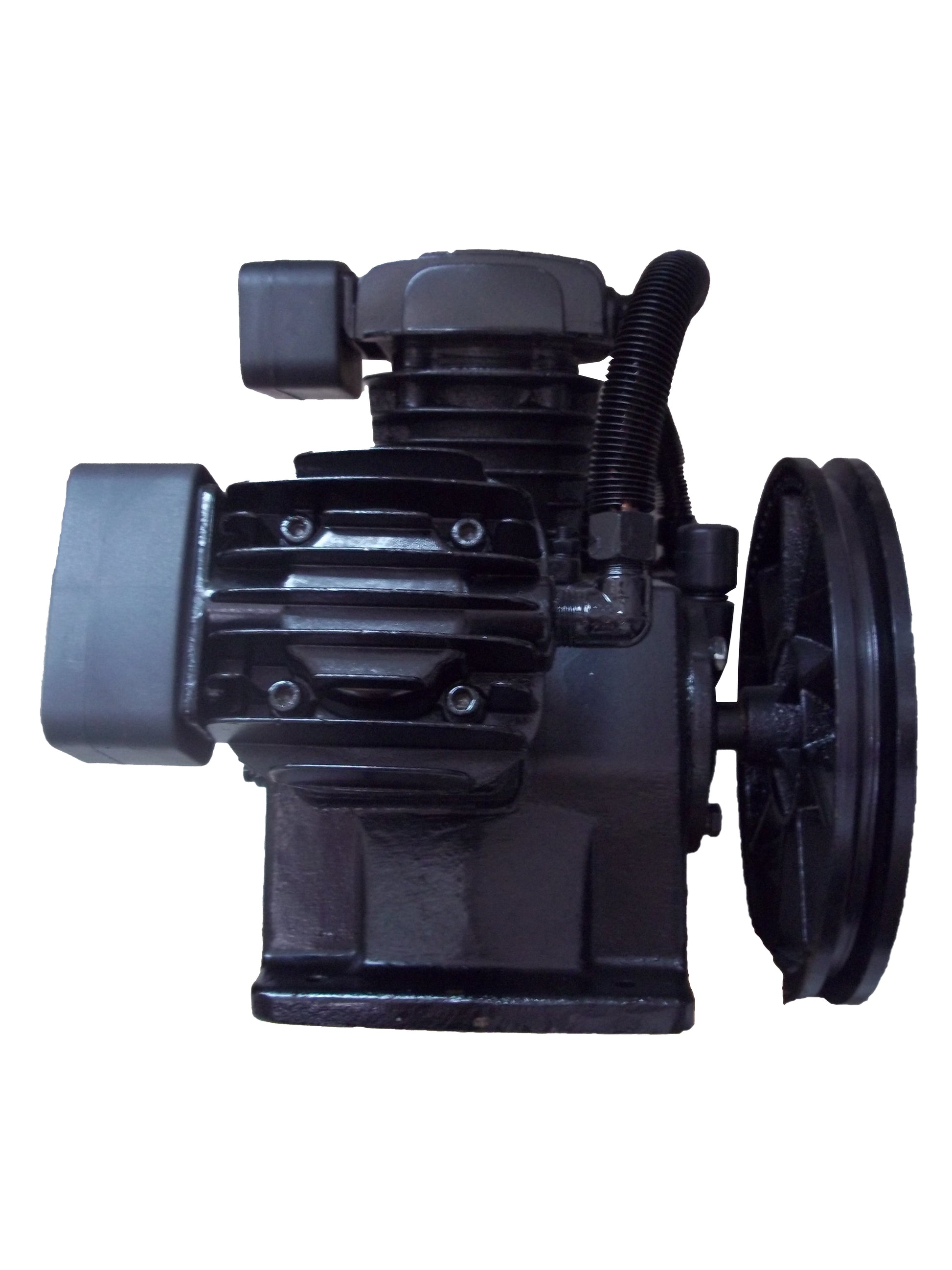

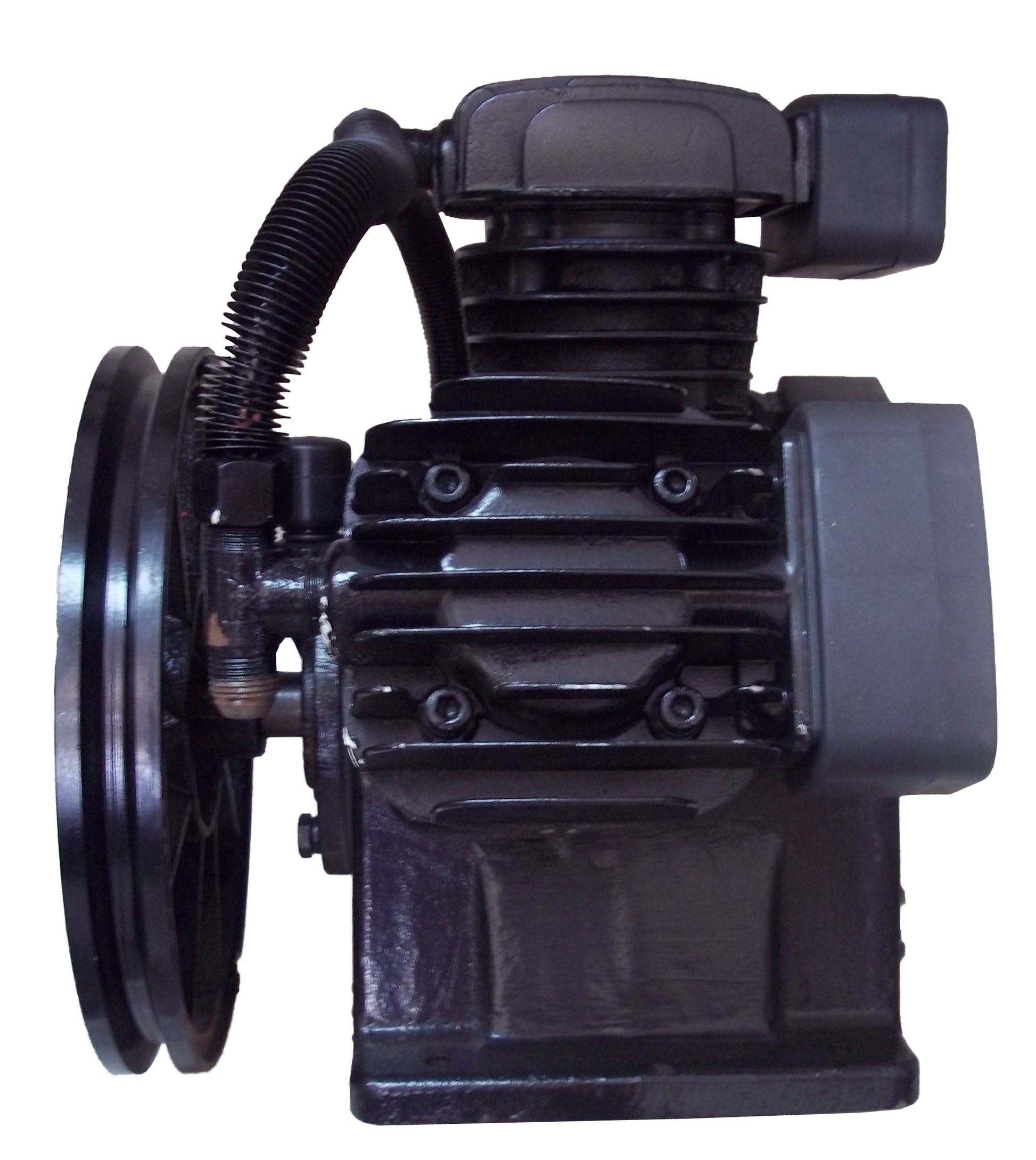

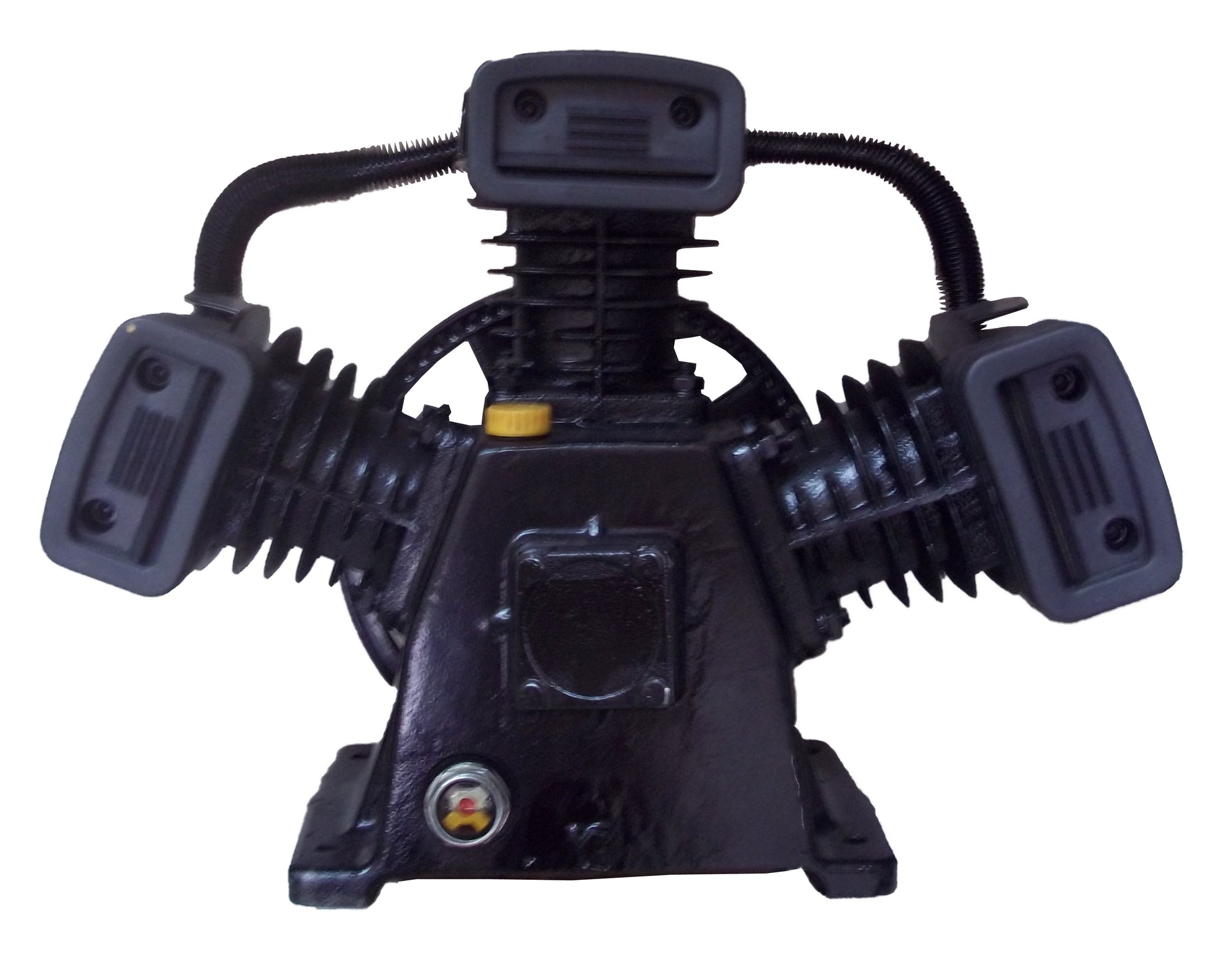

CC3065 - 3 CYLINDER V-STYLE CAST IRON COMPRESSOR PUMP COMPATIBLE WITH MOST (TRUE) 5 HP MOTORS FOR 60 OR 80 GALLON COMPRESSOR ( 8 OR 9 HP GAS ENGINE ) SINGLE STAGE 150 PSI MAX PRESSURE, APPROXIMATELY 15 to 18 CFM

• Bore and Stroke CC: 65 X 46
• Bore & Stroke Inches: 2 X 1-4/5
• Weight KG/LB: 14.2/31.3
• Oil: 0.185 Gal
• Flywheel Grooves/Type: 1/A
• Flywheel Torque: 20-25
• RPM: 1080 High
• Number of Cylinders: 3
• Stage Type: 1
• Horsepower: 2 minimum RPM, 3 Maximum RPM
• Max Operating PSI: 150

 CC3065 Pump 16.5 CFM @ 100 PSI, 5.0 Horsepower, Max Rated @ 150 PSI

• Shipping Dimensions: 60# 17x25x17

Fits The Following Air Compressors:

• IH8G30TRKE-H-BS
• IHD3160V1
• IHD7160V1
• IHD7180V1
• IHP80G25H1-BS
• IHP80GE25H1-BS
• IHP90G25H1
• IHTT80G-BS
• IHTT80GE-BS
• IHTT90G
• BEC-6051V1
• KC7160V1
• NAC7160V1
• TE-6071V1
• TE-8071V1
• XLG-6071V1G
• XLG-8071V1G
